Product Details
Place of Origin: China
Brand Name: TYOHM
Payment & Shipping Terms
Minimum Order Quantity: 1K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Operating Ambient Temperature: |
-55℃~175℃ |
Relative Temperature: |
50PPM/ºC( Up To 15PPM/ºC Upon Request ) |
Overload Characteristic: |
1.5 Times Rated Voltage, 5 Seconds |
Power Durability: |
At 1000 Hours Of Rated Voltage , ΔR≤±0.4% |
Moisture Resistance: |
MIL-Std-202,Method 106 , ΔR≤±0.5%R |
Insulation Resistance: |
>1000 MΩ |
Operating Ambient Temperature: |
-55℃~175℃ |
Relative Temperature: |
50PPM/ºC( Up To 15PPM/ºC Upon Request ) |
Overload Characteristic: |
1.5 Times Rated Voltage, 5 Seconds |
Power Durability: |
At 1000 Hours Of Rated Voltage , ΔR≤±0.4% |
Moisture Resistance: |
MIL-Std-202,Method 106 , ΔR≤±0.5%R |
Insulation Resistance: |
>1000 MΩ |

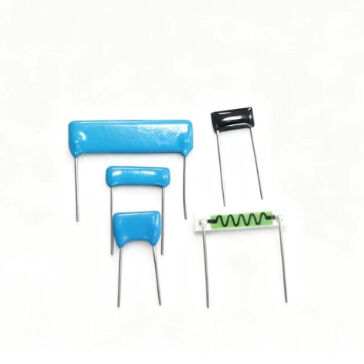

Surface Mount Thick Film Non-Inductive High Voltage Resistor Manufactured using a high-purity ceramic substrate and precious metal thick-film technology, this resistor boasts excellent withstand voltage and long-term electrical stability. The resistor is encapsulated in silicone or glass, allowing reliable operation in various environments including air, high-pressure oil, and epoxy resin.
Designed as a non-inductive device, this product offers excellent pulse tolerance and high stability, making it particularly suitable for high-voltage power supplies and high-energy pulse circuits. Tin-plated copper leads ensure good conductivity and solderability, making it an ideal choice for applications requiring high precision and reliability.
| Item | Parameter Description |
|---|---|
| Product Name | Chip Thick Film Non-Inductive High Voltage Resistor |
| Power Range | 0.25W ～ 12W |
| Resistance Accuracy | ±0.5%, ±1%, ±2%, ±5%, ±10% |
| Structure Type | Non-Inductive Design |
| Package Type | Silicone Encapsulation / Glass Dielectric Encapsulation |
| Substrate Material | High-quality alumina ceramic (Al₂O₃) with ≥95% content |
| Resistor Film Material | Thick film material of precious metals such as silver, ruthenium, and palladium |
| Sintering Temperature | High-temperature sintering at approximately 850℃ |
| Lead Material | Tinned Copper Lead |
| Moisture Resistance | Excellent moisture and corrosion resistance |
Excellent High Voltage Withstand Performance: Stable long-term operation in high-voltage and pulse impact environments.
Non-inductive Structure Design: Effectively suppresses parasitic inductance, ensuring stable signal transmission.
High Thermal Conductivity and High Reliability: The alumina ceramic substrate provides excellent heat dissipation, extending resistor lifespan.
Precision Resistive Film Technology: Precious metal thick-film sintering technology ensures stable resistance and low temperature drift.
High Packaging Flexibility: Silicone and glass packaging are suitable for various electrical and mechanical environments.
This series of thick-film non-inductive high-voltage resistors is widely used in:
