Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: NKNP
Document: NKNP Non-Inductive Wound Re...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Value: |
0.1~3Ω ; 0.1~10Ω ; 0.1~20Ω |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temp. Coeff: |
±300 Ppm/°C |
Insulation Resistance: |
1,000MΩ ( DC100V Or 500V Megger ) |
Terminal Quality: |
< 1W : 1 Kg Or > 2W : 2.5 Kg |
Dimensions: |
Please See The Document |
Resistance Value: |
0.1~3Ω ; 0.1~10Ω ; 0.1~20Ω |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temp. Coeff: |
±300 Ppm/°C |
Insulation Resistance: |
1,000MΩ ( DC100V Or 500V Megger ) |
Terminal Quality: |
< 1W : 1 Kg Or > 2W : 2.5 Kg |
Dimensions: |
Please See The Document |

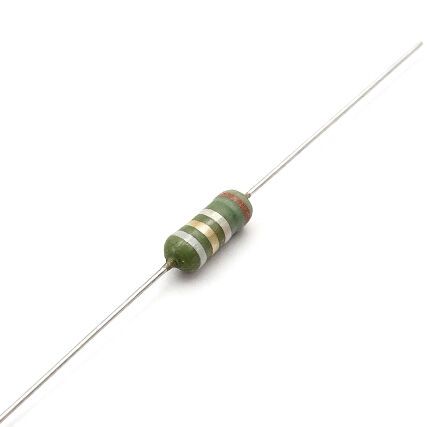

1. Very low inductance ( less than 1 H ).
2. Flameproof painting, resistant to heat & solvents.
3. Super heat dissipation, small linear temperature coefficient.
4. Instant overload capability, low noise figure and low annual shift on resistance values.
| Parameter Item | Description |
|---|---|
| Inductance Value | Very low inductance value (less than 1 μH), effectively reducing the influence of parasitic inductance |
| Fire-Resistant Coating | Utilizes a fire-resistant coating, providing excellent heat and solvent resistance, ensuring the resistor's safety in extreme environments |
| Heat Dissipation Performance | Superior heat dissipation performance with a small linear temperature coefficient, reducing resistance changes caused by temperature fluctuations |
| Instantaneous Overload Capacity | Excellent instantaneous overload withstand capability, able to withstand instantaneous high loads without damage |
| Noise Characteristics | Low noise characteristics, ensuring no interference is introduced in signal processing |
| Resistance Value Stability | Extremely low annual resistance deviation, ensuring stability after long-term use |
| Maximum Power | Maximum power handling capacity is available for different models to ensure resistors are not damaged under overload conditions. |
Fire-resistant, non-inductive wire-wound resistors offer exceptional precision and reliability, making them indispensable components in high-precision circuit designs. Firstly, these resistors feature a low-noise design and a small linear temperature coefficient, maintaining extremely high resistance stability even under environments with significant temperature variations. A small temperature coefficient means a very low rate of change in resistance value, with negligible deviations under extreme temperature differences.
Secondly, these resistors possess excellent overload capacity, capable of withstanding instantaneous high currents without damage, ensuring stable operation under sudden load conditions. Their low-noise characteristics further enhance their reliability in high-frequency applications, reducing the impact of noise sources on circuit performance.
