Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: SQH
Document: SQH(T)60W.pdf
Payment & Shipping Terms
Minimum Order Quantity: 0.5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range(Ω): |
1~3KΩ |
Resistance Accuracy: |
±5% |
Dielectric Withstanding Voltage: |
AC 2000V For 1 Minutes (No Evidence Of Mechanical Damage) |
Insulation Resistance: |
1,000MΩ ( DC 1000V Megger ) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
Resistance Range(Ω): |
1~3KΩ |
Resistance Accuracy: |
±5% |
Dielectric Withstanding Voltage: |
AC 2000V For 1 Minutes (No Evidence Of Mechanical Damage) |
Insulation Resistance: |
1,000MΩ ( DC 1000V Megger ) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
1. Flameproof construction in a ceramic case, resistant to humidity and insulation
2. Quick connect terminals specifically designed for automotive applications
3. Excellent heat dissipation with small linear temperature coefficient
4. Instant overload capability with low noise figures and minimal annual shift in resistance values

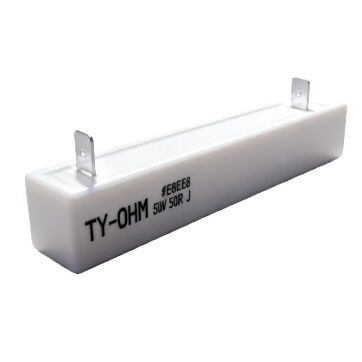

The Heat Resistance Durable Cement Resistor with Faston Terminals is a resistive element featuring a high heat-resistant ceramic housing, designed to withstand harsh environments.
Its unique Faston terminals make installation easier and more stable in high-vibration, high-temperature environments such as automotive electronics.
The product design features excellent heat dissipation and a low linear temperature coefficient, enabling rapid recovery and maintenance of high-precision electrical performance under instantaneous overload.
Its ceramic housing provides flame retardant and moisture-resistant properties, ensuring long-term stable operation and making it widely applicable to electrical systems requiring high reliability.
| Item | Parameter Description |
|---|---|
| Product Name | High Temperature Durable Cement Resistor with Faston Terminals |
| Power Range | 60W or 100W |
| Resistance Tolerance | ±1%, ±5% |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature Range | -55°C ～ +250°C |
| Terminal Type | Faston Terminals |
| Encapsulation Material | High Heat Resistant Cement, Flame Retardant Coating |
High Temperature & Flameproof Performance
Utilizing a high-temperature ceramic shell and flame-retardant coating, effectively preventing combustion and electrical failure, ensuring circuit safety.
Excellent Heat Dissipation
Optimized resistor design rapidly conducts heat to the casing, maintaining a stable operating temperature and extending service life.
Instant Overload Capability
The resistor exhibits rapid recovery under instantaneous overload conditions, reducing performance fluctuations caused by overload.
Low Noise & Minimal Drift
Ensuring low noise characteristics and providing a low annual drift rate ensures long-term operational stability and accuracy.
High-Temperature Durable Cement Resistors with Fasten Terminals Widely used in:
