Product Details
Place of Origin: China
Brand Name: TYOHM
Payment & Shipping Terms
Minimum Order Quantity: 1K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Temp. Coeff.: |
±300pmm/°C |
Operating Temperature: |
-55℃ ～ +275℃ |
Withstand Voltage: |
AC 1500V / 1 Minute |
Short-Term Overload: |
10 Times Rated Power For 5 Seconds |
Load Life In Humidity: |
Overload Rated Voltage Or Max, Working Voltage For 1000 Hours At The 40±2 °C And 90~95% Relative Humidity |
Nonflammability: |
16 Times Rated Power For 5 Minutes |
Temp. Coeff.: |
±300pmm/°C |
Operating Temperature: |
-55℃ ～ +275℃ |
Withstand Voltage: |
AC 1500V / 1 Minute |
Short-Term Overload: |
10 Times Rated Power For 5 Seconds |
Load Life In Humidity: |
Overload Rated Voltage Or Max, Working Voltage For 1000 Hours At The 40±2 °C And 90~95% Relative Humidity |
Nonflammability: |
16 Times Rated Power For 5 Minutes |

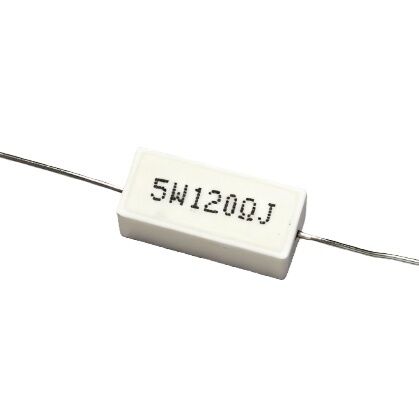

The JRX series heated cement resistor is a high-performance device integrating resistance and heating functions. The product uses high-stability resistance wire wound and encapsulated in a high-temperature resistant insulating cement shell, possessing excellent thermal conductivity and mechanical strength. Its robust structure and uniform heat dissipation enable long-term stable operation under high power loads and harsh environments. The JRX series can be used not only as current-limiting and voltage-dividing resistors but also as electric heating elements, widely meeting the diverse needs of industrial and household equipment.
| Item | Specification |
|---|---|
| Series | JRX Heated Cement Resistor |
| Power Rating | Typical power range 5W～50W depending on model |
| Tolerance | ±5%, ±10% |
| Insulation Resistance | ≥100MΩ (DC 500V) |
| Temperature Coefficient | Low temperature drift characteristic, better than ±400ppm/°C |
| Material | High-insulation inorganic ceramic housing |
| Internal Structure/Construction | Iron cap end seal, high-temperature potting compound, fiberglass core support |
The JRX series utilizes a high-temperature sintering process and an inorganic insulation filling structure, resulting in excellent heat resistance and shock resistance. The resistor element can operate continuously in high-temperature environments without failure, ensuring long-term stable output.
The outer shell uses ceramic insulation material with an insulation resistance exceeding 10MΩ, effectively preventing leakage and short circuits. The internal design employs a high-temperature resistant iron cap and fiberglass skeleton, providing good mechanical strength and shock resistance.
The resistor wire structure is rationally designed, resulting in uniform heat distribution and stable temperature rise, suitable for both continuous heating and intermittent operation.
The JRX series is widely used in electric heating devices, power supply equipment, household appliances, lighting systems, motor brakes, thermostats, and industrial instruments, among other fields. Its high temperature resistance, high stability and insulation properties make it an ideal choice for applications requiring current limiting, energy dissipation and thermal control.
