Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: NRSN
Document: NRSN Anti-Pulse Non-Inducti...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range(Ω): |
0.22~200K |
Resistance Accuracy: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temp. Coeff.: |
±300 Ppm/°C |
Rated Wattage(W): |
1W |
Short-Term Overload: |
2.5 Times Of Rated Wattage For 5 Seconds ( ±1% ) |
Insulation Resistance: |
1,000MΩ ( DC 100V Megger ) |
Resistance Range(Ω): |
0.22~200K |
Resistance Accuracy: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temp. Coeff.: |
±300 Ppm/°C |
Rated Wattage(W): |
1W |
Short-Term Overload: |
2.5 Times Of Rated Wattage For 5 Seconds ( ±1% ) |
Insulation Resistance: |
1,000MΩ ( DC 100V Megger ) |

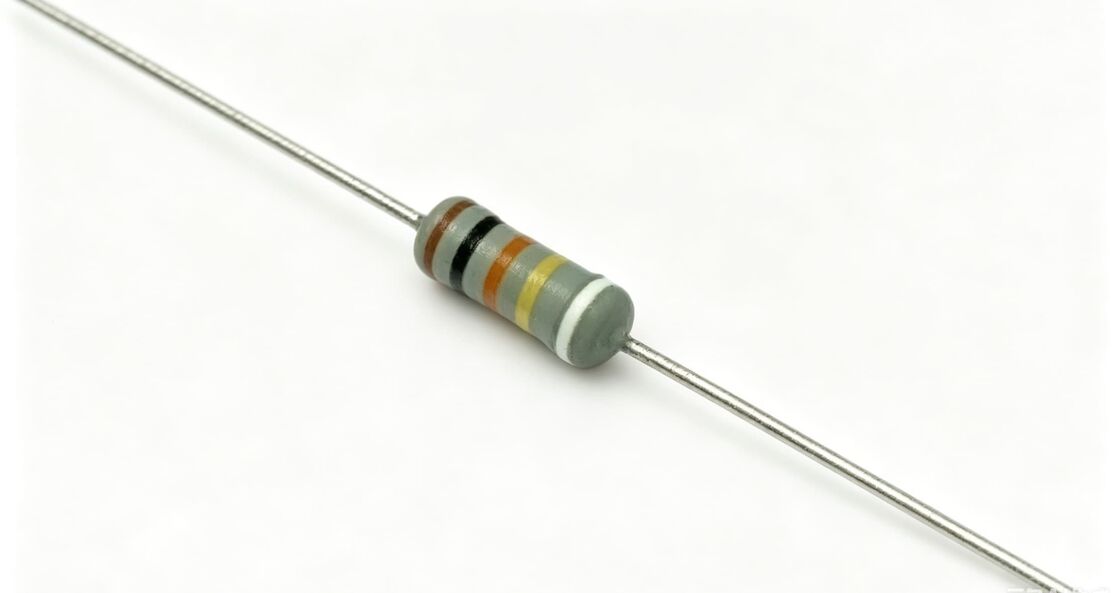

The NRSN Series is a 1/4W anti-pulse non-inductive metal film resistor designed for electronic circuits exposed to repetitive pulse loads and transient surge conditions. Its special low-inductance structure helps reduce unwanted inductive effects while maintaining stable resistance performance under high-energy pulse applications.
As a professional pulse resistor manufacturer, Asia Akita develops pulse-resistant resistor solutions that meet the reliability requirements of industrial electronics, telecommunications equipment, power conversion systems, and automotive electronics.
With excellent pulse endurance, flameproof coating, and high environmental stability, the NRSN Series is an ideal pulse withstand resistor for demanding electronic applications.
| Item | Specification |
|---|---|
| Product Series | NRSN Anti-Pulse Non-Inductive Resistor |
| Rated Power | 1/4W |
| Resistance Range | 0.22Ω – 200kΩ |
| Resistance Tolerance | ±2% (G), ±5% (J) |
| Temperature Coefficient | ±300ppm/°C |
| Maximum Working Voltage | 250V |
| Maximum Overload Voltage | 400V |
| Operating Temperature | -55°C to +155°C |
| Inductance | <1μH |
| Insulation Resistance | ≥1000MΩ |
| Safety Coating | Flameproof Paint |
| Applicable Standards | IEC 60115-4, JIS C 5201-4 |
Designed specifically for pulse-loading environments, the NRSN Series offers excellent resistance stability under transient electrical stress, making it suitable for pulse protection and energy absorption circuits.
With inductance below 1μH, the resistor minimizes signal distortion and unwanted inductive effects in high-frequency and pulse-sensitive applications.
The flameproof coating provides additional protection against heat and solvent exposure, helping maintain long-term reliability in industrial environments.
Resistance values from 0.22Ω to 200kΩ allow engineers to select suitable configurations for various circuit designs. As a custom pulse resistor solution provider, customized resistance values can also be evaluated for specific projects.
