Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: SQ
Document: SQ Cemnet Resistors-2020062...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Value: |
Please Check The Attachment |
Resistance Temp. Coeff.: |
±300 Ppm/°C ; <1Ω : ±600 Ppm/°C |
Short-Term Overload: |
10 Times(power Film : 5 Times) Of Rated Wattage For 5 Seconds. ( ±2% ) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
Dismensions: |
Please Check The Attachment |
Resistance Value: |
Please Check The Attachment |
Resistance Temp. Coeff.: |
±300 Ppm/°C ; <1Ω : ±600 Ppm/°C |
Short-Term Overload: |
10 Times(power Film : 5 Times) Of Rated Wattage For 5 Seconds. ( ±2% ) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
Dismensions: |
Please Check The Attachment |
High-performance resistors designed for demanding industrial applications with superior stability and reliability.
1. Compact dimensions with excellent stability in high-temperature environments, resistant to humidity and shock
2. Fully insulated design ideal for printed circuit board applications
3. Exceptional heat dissipation with minimal linear temperature coefficient
4. Instant overload capability with low noise figures and minimal annual resistance value drift

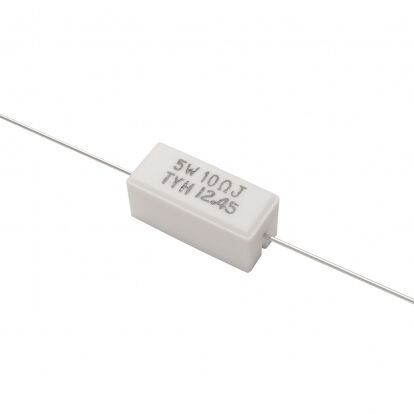

Cement Resistors are robust, high-temperature resistant, and moisture-resistant high-power resistors widely used in various electronic circuits for current limiting, voltage division, load application, and protection.
This series features a compact design, offering excellent heat dissipation and power handling capacity while maintaining a small size, making it particularly suitable for high-temperature, high-humidity, and high-impact environments.
Internally, alloy resistance wire or metal oxide film elements are used, exhibiting extremely low temperature coefficients and noise characteristics, maintaining linear resistance stability even under sustained high-temperature loads.
With its excellent shock resistance, high-temperature resistance, and long-term reliability, Cement Resistors are indispensable key components in industrial power supplies, motor drives, lighting controls, and consumer electronics.
| Item | Parameter Description |
|---|---|
| Product Name | Cement Resistors |
| Rated Power | 1W～40W (Customizable) |
| Resistance Accuracy | ±1%, ±5% |
| Insulation Withstand Voltage | 1000V AC / 1 minute |
| Housing Material | High thermal conductivity and heat-resistant cement encapsulation (flame-retardant) |
| Mounting Method | PCB through-hole or screw mounting |
Fully Insulated Construction
The housing uses an insulating cement encapsulation structure, effectively preventing arc discharge and short circuits, suitable for printed circuit board applications with high safety requirements.
Superior Heat Dissipation and Power Load Capacity
High thermal conductivity cement material combined with alloy winding structure ensures rapid heat dissipation and low temperature rise performance, allowing for prolonged operation under high power loads.
Strong Resistance to Humidity and Shock
Tested for humidity, vibration, and shock, it possesses excellent resistance to mechanical stress, ensuring long-term reliability in harsh environments.
Chemical Resistance
The outer shell coating effectively resists chemical solvents and acidic/alkaline gases, extending product lifespan.
