Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: KNP-C
Document: KNP-C Wire Wound Resistors,...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Value: |
0.1~1KΩ |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Short-Term Overload: |
10 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Insulation Resistance: |
1,000MΩ ( DC500V Megger ) |
Surge Voltage Withstanding: |
20 Pulses(1.2/50us), Max. 60s Between Each Pulse. ( ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min ( Not Flamed ) |
Resistance Value: |
0.1~1KΩ |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Short-Term Overload: |
10 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Insulation Resistance: |
1,000MΩ ( DC500V Megger ) |
Surge Voltage Withstanding: |
20 Pulses(1.2/50us), Max. 60s Between Each Pulse. ( ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min ( Not Flamed ) |

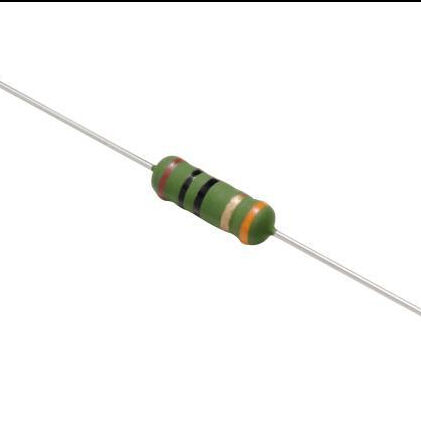

Anti-Surge Flameproof Anti-Pulse Wire Wound Resistors are high-reliability power resistors specifically designed for high-energy pulse absorption and circuit protection.
The products feature superior surge protection performance (withstanding surge voltages up to 6KV, compliant with IEC 61000-4-5 standard), maintaining stable characteristics even under transient overvoltage and high-energy surges.
The surface is coated with a flameproof coating, effectively preventing the risk of combustion caused by overheating or arcing, while also possessing high temperature resistance and chemical solvent resistance.
| Item | Parameter Description |
|---|---|
| Product Name | Anti-Surge Flameproof Wire Wound Resistor |
| Surge Resistance Rating | Withstands surge voltage up to 6KV (IEC 61000-4-5) |
| Insulation Withstand Voltage | 1000V AC / 1 minute |
| Coating Characteristics | Flame-retardant coating (heat resistant, solvent resistant) |
Tested according to IEC 61000-4-5 standard, it can withstand transient surge voltage impacts up to 6KV, maintaining stability and reliability under extreme conditions such as overvoltage and electromagnetic interference.
Superior Heat Dissipation
Utilizing a ceramic core and tight winding process, it boasts excellent thermal conductivity and a linear temperature coefficient, ensuring controllable temperature rise and longer lifespan under high-power operating conditions.
Anti-Pulse Capability
Possessing high energy absorption capacity, it effectively suppresses pulse interference and transient overloads, making it an ideal component for power supplies and protection circuits.
Excellent Environmental Robustness
The product has passed high humidity and high temperature aging tests, demonstrating excellent resistance to moisture, corrosion, and chemicals, making it suitable for harsh environments.
Power Supply Units & Chargers: for surge absorption and overload protection;
Surge Protection Circuits: providing 6KV transient surge suppression capability;
Industrial Automation Systems: energy consumption and protection for motor drives and PLC systems;
Automotive Electronics: used in vehicle power supplies, charging control, and protection modules;
Energy Storage & Inverters: addressing the protection needs of high-voltage pulses and transient interference;
