Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: RD
Document: RD Carbon Film Resistors-20...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range(Ω): |
3.9~4.7MΩ ; 3.9~10MΩ |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temperature Coefficient: |
0~-1300 Ppm/°C |
Short-Term Overload: |
2.5 Times Of Rated Wattage For 5 Seconds ( ±1% ) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 40°C 95% RH 500 Hours ( ΔR/R≤±5% ) |
Dimensions: |
Please Check The Attachment |
Resistance Range(Ω): |
3.9~4.7MΩ ; 3.9~10MΩ |
Resistance Tolerance: |
±5% ( J ) Or ±2% ( G ) |
Resistance Temperature Coefficient: |
0~-1300 Ppm/°C |
Short-Term Overload: |
2.5 Times Of Rated Wattage For 5 Seconds ( ±1% ) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 40°C 95% RH 500 Hours ( ΔR/R≤±5% ) |
Dimensions: |
Please Check The Attachment |

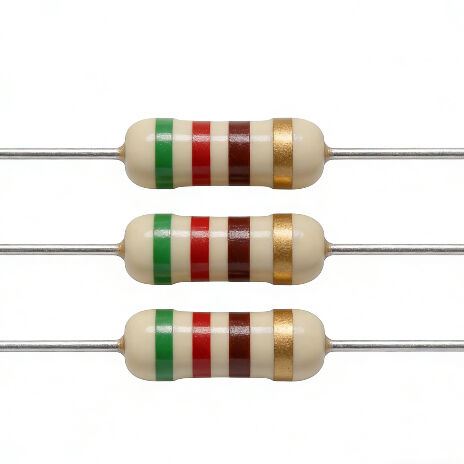

High-performance resistors featuring pure carbonhydric composition on ceramic cores, offering exceptional value and reliability for industrial applications.
1. Pure carbonhydric composition on durable ceramic cores
2. Cost-effective solution for various applications
3. Proven quality and long-term reliability
4. Available in flameproof type (RDN series)
Carbon Film Resistors are resistive elements made from high-quality hydrocarbon materials, featuring a durable built-in ceramic substrate for extremely high reliability.
This series of resistors achieves stable resistance characteristics by depositing a carbon film on a ceramic substrate, providing a cost-effective solution suitable for a variety of electrical applications.
Carbon film resistors have excellent temperature coefficients and durability, making them particularly suitable for low-power circuits.
Furthermore, the RDN series offers a flame-retardant design, adding extra safety and preventing overheating or fire hazards in the circuit.
| Item | Parameter Description |
|---|---|
| Product Name | Carbon Film Resistor |
| Power Range | 0.125W ～ 2W |
| Resistance Range | 10Ω ～ 10MΩ |
| Resistance Tolerance | ±5%, ±10% |
| Temperature Coefficient | ±300ppm/°C |
| Operating Voltage | 50V ～ 500V |
| Operating Temperature Range | -55°C ～ +155°C |
| Material | Hydrocarbon film, durable ceramic substrate |
| Flame Retardant Design | RDN Series (Flame Retardant) |
| Package Type | Cylindrical, Through-hole |
Cost-Effective Solution
Utilizing hydrocarbon materials and a ceramic substrate design, it offers excellent cost-effectiveness, meeting the needs of budget-conscious circuits.
Good Temperature Coefficient
Carbon film resistors have a stable temperature coefficient, suitable for applications with significant temperature variations.
Flameproof Option
The RDN series offers a flame-retardant design, adding extra safety for circuits with high safety requirements.
Long-Term Reliability
Through rigorous quality control, carbon film resistors exhibit excellent long-term stability and reliability, suitable for long-term applications.
