Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: RN
Document: RN Precision Metal Film Res...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Value: |
10~1MΩ ； 10~2MΩ |
Resistance Tolerance: |
±1% ( F ) Or ±0.5% ( D ) |
Resistance Temperature Coefficient: |
±25ppm/°C、±50ppm/°C、±100ppm/°C |
Insulation Resistance: |
10,000MΩ ( DC 100V Or 500V Megger ) |
Terminal Strength: |
1kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min. (RN 1W & RN 1WL) ( Not Flamed ) |
Resistance Value: |
10~1MΩ ； 10~2MΩ |
Resistance Tolerance: |
±1% ( F ) Or ±0.5% ( D ) |
Resistance Temperature Coefficient: |
±25ppm/°C、±50ppm/°C、±100ppm/°C |
Insulation Resistance: |
10,000MΩ ( DC 100V Or 500V Megger ) |
Terminal Strength: |
1kg ( No Evidence Of Mechanical Damage ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min. (RN 1W & RN 1WL) ( Not Flamed ) |
1. High precision tolerance: ±0.25%, ±0.5%, ±1%, ±5%
2. Exceptional temperature stability with low noise characteristics
3. Superior reliability for demanding applications
4. Special 0.1%/25ppm option available (case by case)

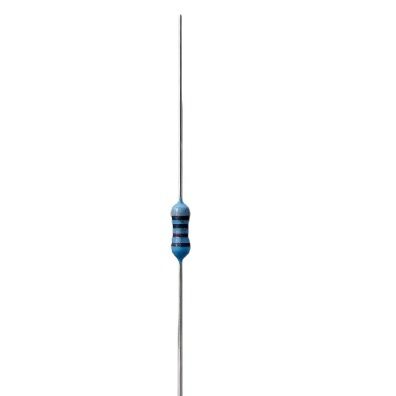

Precision Metal Film Resistors are high-performance resistive components designed for high-precision and high-stability circuits.
This series of products utilizes advanced vacuum deposition technology to form a uniform metal film layer on a high-purity ceramic substrate, thereby achieving extremely low temperature coefficients (25ppm, 50ppm, 100ppm) and high-precision resistance tolerances (±0.25%, ±0.5%, ±1%, ±5%).
These resistors possess excellent temperature stability and low noise characteristics, maintaining outstanding electrical performance even in harsh operating environments, making them ideal for instrumentation, precision control, and measurement circuits.
| Item | Parameter Description |
|---|---|
| Product Name | Precision Metal Film Resistor |
| Power Range | 1/8W ～ 2W |
| Resistance Range | 10Ω ～ 2MΩ |
| Resistance Tolerance | ±0.25%, ±0.5%, ±1%, ±5% |
| Temperature Coefficient | ±25ppm, ±50ppm, ±100ppm |
| Special Version | 0.1% / 25ppm (Customizable) |
| Operating Voltage | 50V ～ 500V |
| Operating Temperature Range | -55°C ～ +155°C |
| Noise Level | Extremely Low Noise |
| Reliability | Excellent long-term stability, extremely low drift |
High Precision & Low TCR
Ensures stable resistance over a wide temperature range, suitable for high-precision signal processing circuits.
Low Noise Design
Utilizes metal film technology to significantly reduce resistor noise and optimize signal purity.
Superior Reliability
Maintains excellent electrical performance under long-term operation and environmental stress, with extremely low drift rate.
Flexible Tolerance Options
Offers multiple combinations of precision and temperature coefficients to meet diverse design requirements.
Precision Metal Film Resistors are widely used in:
