Power Rating Load: |
Rated Voltage For 30 Minutes ( Surface Temp. 275°C Max ) |
Short-Term Overload: |
5 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Dielectric Withstanding Voltage: |
AC 500V For 1 Minutes ( No Evidence Of Mechanical Damage Or Insulation Breakdown ) |
Insulation Resistance: |
10,000MΩ ( DC 500V Megger ) |
Temp. Cycle: |
-55°C( 30 Min.)→ Room Temp.( 3 Min.)→+200°C( 30 Min.) →Room Temp.( 3 Min.) / ( 5 Cycles) ( ΔR/R≤±1% ) |
Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 70°C 1000 Hours ( ΔR/R≤±2% ) |
Power Rating Load: |
Rated Voltage For 30 Minutes ( Surface Temp. 275°C Max ) |
Short-Term Overload: |
5 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Dielectric Withstanding Voltage: |
AC 500V For 1 Minutes ( No Evidence Of Mechanical Damage Or Insulation Breakdown ) |
Insulation Resistance: |
10,000MΩ ( DC 500V Megger ) |
Temp. Cycle: |
-55°C( 30 Min.)→ Room Temp.( 3 Min.)→+200°C( 30 Min.) →Room Temp.( 3 Min.) / ( 5 Cycles) ( ΔR/R≤±1% ) |
Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 70°C 1000 Hours ( ΔR/R≤±2% ) |
1. Flameproof UL94V0 molded package, resistant to heat, humidity & insulation.
2. Special design for automatic surface mounting.
3. Excellent mechanical strength & electrical stability.
4. Reducing assembly costs.
5. AEC-Q200 qualified.

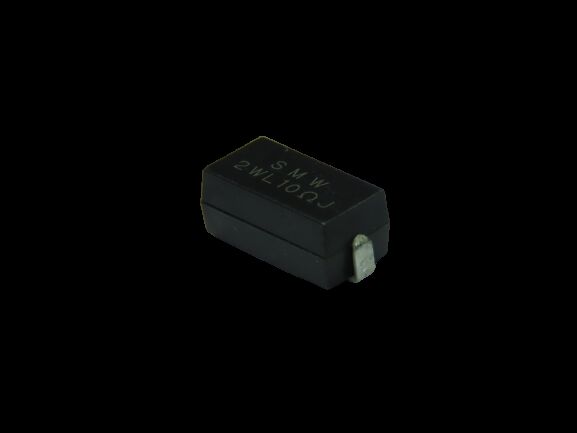

Power Wire-Wound Chip Resistors are resistive elements suitable for high-power load applications, employing a wire-wound process and packaged in a chip structure.
These resistors possess excellent mechanical strength and electrical stability, maintaining long-term stable performance in high-temperature, high-humidity, and harsh environments.
Encapsulated with UL94V0 flame-retardant material, they not only possess excellent heat resistance and insulation, but also effectively prevent electrical failures caused by environmental factors.
Designed specifically for automated surface mounting, they significantly improve production efficiency and reduce assembly costs, and are widely used in circuit systems requiring high power handling.
| Item | Parameter Description |
|---|---|
| Product Name | Power Wire-Wound Chip Resistor |
| Power Range | 1WL~3WL |
| Resistance Range | 0.1Ω ～ 500Ω |
| Resistance Tolerance | ±1%, ±5% |
| Temperature Coefficient | ±200ppm/°C |
| Package Type | SMD Chip Package |
| Flame Retardant Rating | UL94V0 Certification |
| Materials | Metal Wire-Wound, Ceramic Substrate |
High Power Capability
Utilizing wire-wound technology, it can withstand high power loads and is suitable for high-power circuits and electrical equipment.
Excellent Environmental Resistance
Encapsulated in UL94V0 flame-retardant material, it possesses excellent properties such as heat resistance, moisture resistance, and corrosion resistance, enabling it to adapt to various extreme environments.
Excellent Mechanical Strength
The wire-wound design improves the resistor's vibration and shock resistance, ensuring stability.
Cost-Effective Assembly
This resistor is specifically designed for automated surface mount assembly, simplifying the production process and reducing manual assembly costs.
Power Wire-Wound Chip Resistors are widely used in:
