Product Details
Place of Origin: China
Brand Name: TYOHM
Certification: AEC-Q200
Model Number: SQH
Document: SQH(T)50W-220215-v3.pdf
Payment & Shipping Terms
Minimum Order Quantity: 0.5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Short-Term Overload: |
10 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Dielectric Withstanding Voltage: |
AC 1000V For 1 Minutes (No Evidence Of Mechanical Damage) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 70°C 1000 Hours ( ΔR/R≤±5% ) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30minutes OFF 40℃ 95%RH 1000 Hours ( ΔR/R≤±5% ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
Short-Term Overload: |
10 Times Of Rated Wattage For 5 Seconds ( ±2% ) |
Dielectric Withstanding Voltage: |
AC 1000V For 1 Minutes (No Evidence Of Mechanical Damage) |
Terminal Strength: |
4.5kg ( No Evidence Of Mechanical Damage ) |
Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 70°C 1000 Hours ( ΔR/R≤±5% ) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30minutes OFF 40℃ 95%RH 1000 Hours ( ΔR/R≤±5% ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Minutes ( Not Flamed ) |
1. Flameproof construction in a ceramic case for superior humidity and insulation resistance
2. Quick connect Faston terminals specifically designed for automotive applications
3. Excellent heat dissipation with minimal linear temperature coefficient
4. Instant overload capability with low noise figures and stable resistance values
5. AEC-Q200 qualified for automotive-grade reliability

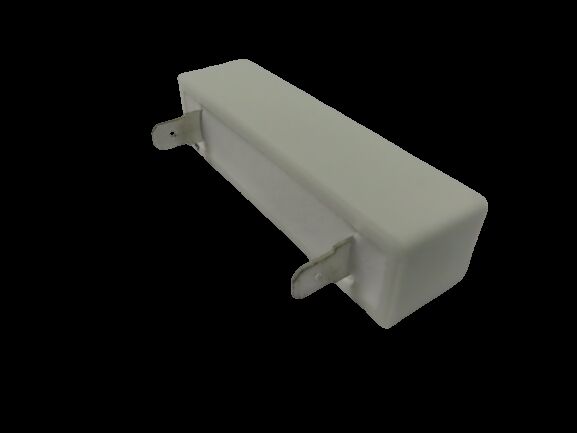

Durable Cement Resistors with Faston Terminals Featuring a high-power ceramic housing design, these resistors offer excellent flame retardancy, humidity resistance, and insulation properties. The housing utilizes a flame-retardant ceramic encapsulation, effectively preventing performance degradation in high humidity or high temperature environments.
Equipped with quick-connect Faston terminals, these resistors are specifically designed for automotive electronics systems, enabling fast and reliable electrical connections suitable for high-current and high-temperature applications. This series of resistors boasts excellent heat dissipation and a stable linear temperature coefficient, maintaining stable resistance changes during long-term operation and meeting AEC-Q200 automotive-grade reliability standards.
| Item | Parameter Description |
|---|---|
| Product Name | Durable Cement Resistor with Faston Terminals (50W) |
| Rated Power | 30W~100W |
| Resistance Range | 1Ω ～ 3KΩ |
| Resistance Tolerance | ±1% , ±5% |
| Resistance Temp. Coeff. | ±300ppm/°C |
| Operating Voltage | 50V ～ 1000V |
| Operating Temperature Range | -55°C ～ +155°C |
| Structure | Ceramic flame-retardant housing, Faston terminal connection |
| Flame Retardant Rating | UL94V-0 Flame Retardant Standard |
| Certification | AEC-Q200 Automotive Electronics Reliability Certification |
Excellent Heat Dissipation
Optimized ceramic structure provides excellent thermal conductivity, maintaining stable temperature during high-power operation.
Low Temperature Coefficient & Low Noise
Low linear temperature drift and low noise ensure circuit accuracy and stability.
Fast Terminals
Designed specifically for automotive wiring harness systems, facilitating rapid assembly and improving efficiency.
Durable & Safe
Utilizing explosion-proof and flame-retardant materials, it remains safe under overload conditions, complying with UL and AEC-Q200 standards.
Durable Cement Resistor With Faston Terminals (50W) is widely used in:
