Product Details
Place of Origin: China
Brand Name: TYOHM
Model Number: RSS
Document: RSS Metal Oxide Film Resist...v1.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5K
Price: Please contact us for details
Packaging Details: T/B
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: Depending on the specific circumstances, it generally takes 5-7 work days to complete
Resistance Range(Ω): |
Please Check The Attachment(Ω) |
Dielectric Withstanding Voltage: |
Max. Working Voltage For 1 Minute (No Evidence Of Mechanical Damage) |
Terminal Strength: |
< 1/2W : 1 Kg Or > 1W : 2.5 Kg (No Evidence Of Mechanical Damage) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 40°C 95% RH 500 Hours ( ΔR/R≤±5% ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min ( Not Flamed ) |
Dimensions: |
Please Check The Attachment |
Resistance Range(Ω): |
Please Check The Attachment(Ω) |
Dielectric Withstanding Voltage: |
Max. Working Voltage For 1 Minute (No Evidence Of Mechanical Damage) |
Terminal Strength: |
< 1/2W : 1 Kg Or > 1W : 2.5 Kg (No Evidence Of Mechanical Damage) |
Moisture-proof Load Life: |
Rated Power Load 90 Minutes ON 30 Minutes OFF 40°C 95% RH 500 Hours ( ΔR/R≤±5% ) |
Nonflammability: |
16 Times Of Rated Wattage For 5 Min ( Not Flamed ) |
Dimensions: |
Please Check The Attachment |
1. Electrical and mechanical stability with high reliability
2. Nonflame painting, solvent proof, and resistant to heat & humidity
3. Low annual shift due to strengthened metal oxide film
4. Low noise capable of producing high resistance values unattainable by wire wound resistors

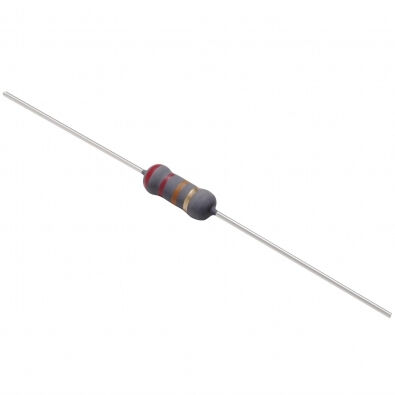

Flameproof Type Metal Oxide Film Resistors are highly reliable and stable precision resistive components designed for long-term operation in high-temperature, high-humidity, and high-stress environments.
These resistors utilize a reinforced metal oxide film as the resistive material, exhibiting excellent electrical stability and mechanical strength. This not only effectively reduces noise but also achieves a high resistance range unattainable by wire-wound resistors.
The surface is coated with a Nonflame Coating, providing solvent resistance, moisture resistance, and high-temperature tolerance, ensuring stable performance even in harsh environments.
| Item | Parameter Description |
|---|---|
| Product Name | Metal Oxide Film Resistor (Flame Retardant Type) |
| Power Range | 1/4W ～ 7W |
| Temperature Coefficient | ±300ppm/°C |
| Coating Material | Flame Retardant Coating (Nonflame Paint) |
| Reliability | Extremely low annual drift rate, excellent long-term stability |
Excellent Electrical and Mechanical Stability
Utilizing a reinforced oxide film structure, the resistance value changes at an extremely low rate, maintaining excellent stability even in high humidity and high heat environments.
Flameproof Coating
The outer layer uses a UL-rated flame-retardant coating, possessing high-temperature resistance, solvent resistance, and corrosion resistance, ensuring safe and reliable use.
Low Noise & Low Drift
Extremely low annual drift rate and low signal noise, suitable for precision measurements and high-sensitivity circuits.
High Resistance Capability
Through metal oxide film technology, a high resistance range that wire-wound resistors cannot achieve can be reached.
Flameproof Type Metal Oxide Film Resistors are widely used in:
